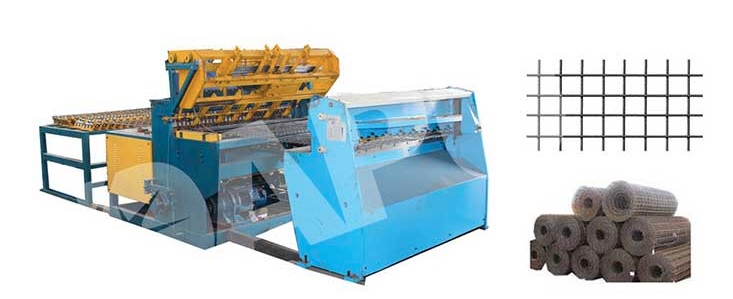

Roll Mesh Welding MachineRoll Mesh Welding MachineRoll mesh welding line, also called automatic welded wiremesh machine, welded wire mesh roll machine, use to make road mesh, reinforcing mesh, construction mesh etc.
INQUIRY  Machine Description   Roll mesh welding line, also called automatic welded wire mesh machine, welded wire mesh roll machine, Roll/Coil mesh welding machine.  Welded wire mesh roll machine adopts our patent technology – Helical gear motor to output big transmission. While imporantly, our Automatic welded roll mesh machine use servo motor to control cross wire distance, more precise.
Machine Advantage   Panasonic, Schneider, ABB, SMC, Igus electric components.Touch screen interface.Line wire feeding from coil.Cross wire pre-cut.PLC control of cross wire space and welding current.Panasonic servo technology for mesh pulling.Water-cooling welding transformers.Brake motor&clutch reducer connect the principal axis directly.Finished mesh in panel or rolls.Roll mesh welding machine.  Technical Data   Model DP-FP-1200BN DP-FP-2000BN DP-FP-2500BNWelding width Max.1200mm Max.2000mm Max.2500mmWire diameter 3-6mmLongitude wire space 50-300mmCross wire space Min.25mmMesh length Max.50mWelding speed 50-75 times/minLongitude wire feeding Automatically from coilCross wire feeding Pre-straightened&pre-cutWelding electrodes Max.25pcs Max.41pcs Max.48pcsWelding transformers 125kva*3pcs 125kva*5pcs 125kva*6pcsMachine size 6.9*2.1*1.8m 6.9*2.9*1.8m 6.9*3.4*1.8mWeight 3.8T 5.8T 6.5T  Auxiliary Equipment    Roll mesh welding line consists of below five parts to make perfect welded mesh in coil.
